Our double chamber vacuum packaging models 416 and 419 help you optimize your productivity by unloading and loading your pouches in one chamber while the other chamber is performing a vacuum packaging or map process. With good paced coordinations of the operators, there should be no downtime between each cycle: no more waiting between cycles save you time while speeding up your production.
Designed for non-stop operations and quick and easy maintenance, our reliable double chamber models can also integrate features such as gas flush, heavy duty and air assited sealing and soft air return.
And of course, our double chamber models are also capable to achieve specialized processes.
With plenty of working space for a table-top model, the chamber is designed roomy with 7.25" height to fit large cuts and a variety of products.
Besides, the dimensions with 16" or 19" sealbars are also designed for maximum arrangments of various North American pouches size.
With the included adjustable shims with easy set-up supports the manipulation of pouches becomes fast and easy.
The dome lid is designed with a wide 65 ° opening to faciliate fast loading and unloading of pouches.
The whole see-through lid allows you to easily watch your pouches and have an unobstructed visual control of your complete packaging process.
The Nel controls provides you time based processes with exceptional precision and sensivity of 0.1 second, allowing you much more possibilites.
Set easily and quickly your vacuum processes with peace of mind using the Classic Mode.
Use the Expert mode to manually adjust the MAP process to fit your products and obtain the result to your finest detail.
The push & turn button gives you access to more functions such as QuickSeal, QuickStop, Maintenance and more.
The desired vacuum level is obtained by the duration of the air evacuation inside your vacuum chamber. The Nel Series provide you a wide range of extended durations in full vacuum region once the 2 mbars vacuum level is reached, and a wide range and exceptional control of the processes in the modified atmosphere region with a sensivity of 0.1 second.
If your application requires a higher sophistication, you may want to explore our pressure-based measurement process Auto Series.
| Model N416 | Model N419 | |
|---|---|---|
| Electrical requirements (220V, single phase, 60 Hz also avalaible) |
230-575V, 3 phases, 60 Hz | 230-575V, 3 phases, 60 Hz |
| Busch pump | 40 m3/h, 2 HP | 40 m3/h, 2 HP |
| Vacuum level | up to 2 mbar | up to 2 mbar |
| Oxygen O2 evacuated proportion at 2 mbars | 99.999% | 99.999% |

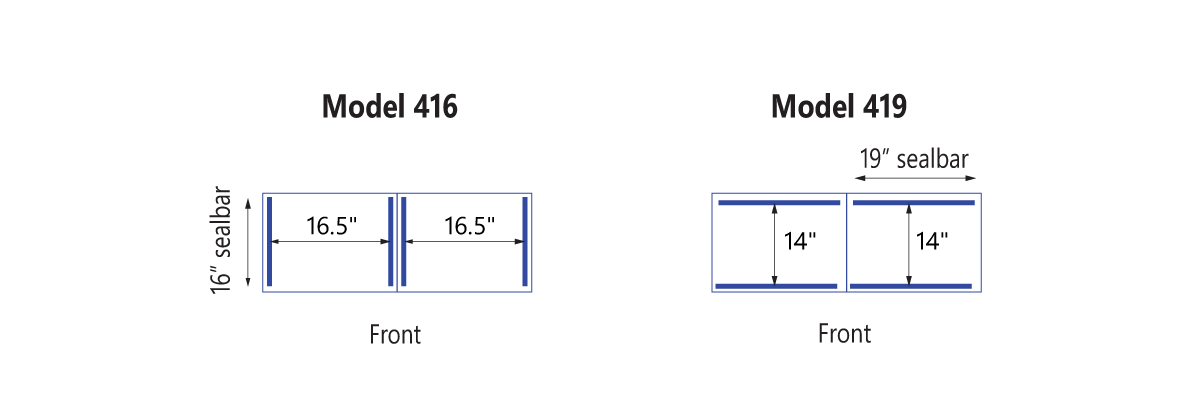

| Sealing bar(s) | 4 x 16" | 4 x 19" |
| Distance between the sealing bars | 16.5" | 14" |
| Chamber height | 7.25" | 7.25" |
| Overall dimension | 47” x 22.5" x 40” (lids closed) | 47” x 22.5" x 40” (lids closed) |
| Ready for gas flush option | Yes | Yes |
| Warranty | 1 year | 1 year |
| Certification | CSA | CSA |
General and versatile modified atmosphere and vacuum packaging.
Advanced and refined MAP and vacuum processes.
Vacuum packaging in high volume and high production rate.
Compact and mobile for side production or individual portions.
