Versatile and reliable, The Hi-Tech Vacuum table top models Nel 216 and Nel 219 are a perfect fit for the packaging of a wide variety of products thanks not only to the large chamber and pump high capacity considering the machine size, but also to the many controls of vacuum and map processes availables. Equally designed for non-stop intensive commercial productions and for new products explorations, our table top models can easily integrate the same options that all our other models have such as gas flush, heavy duty and air assited sealing and soft air return.
And especially, the table top models Nel 216 and Nel 219 are also capable to achieve specialized processes. And if you require a special process in the future, our machines are upgradable.
With plenty of working space for a table-top model, the chamber is designed roomy with 7.25" height to fit large cuts and a variety of products.

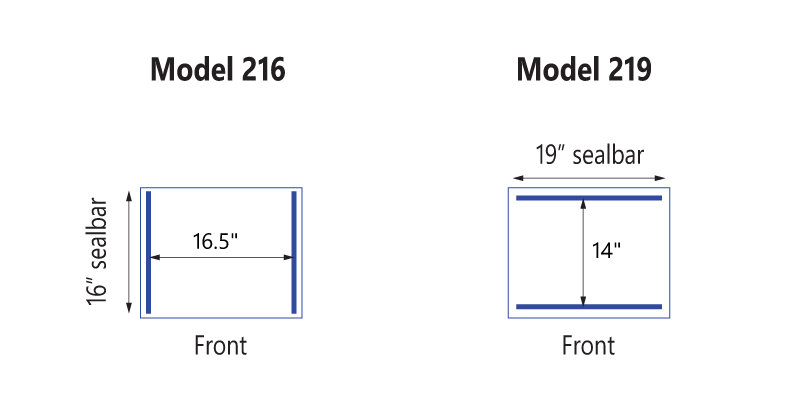

Besides, the dimensions with 16" or 19" sealbars are also designed for maximum arrangments of various North American pouches size.
With the included adjustable shims with easy set-up supports the manipulation of pouches becomes fast and easy.
The dome lid is designed with a wide 65 ° opening to faciliate fast loading and unloading of pouches.
The whole see-through lid allows you to easily watch your pouches and have an unobstructed visual control of your complete packaging process.
The Nel controls provides you time based processes with exceptional precision and sensivity of 0.1 second, allowing you much more possibilites.
Set easily and quickly your vacuum processes with peace of mind using the Classic Mode.
Use the Expert mode to manually adjust the MAP process to fit your products and obtain the result to your finest detail.
The push & turn button gives you access to more functions such as QuickSeal, QuickStop, Maintenance and more.
The desired vacuum level is obtained by the duration of the air evacuation inside your vacuum chamber. The Nel Series provide you a wide range of extended durations in full vacuum region once the 2 mbars vacuum level is reached, and a wide range and exceptional control of the processes in the modified atmosphere region with a sensivity of 0.1 second.
If your application requires a higher sophistication, you may want to explore our pressure-based measurement process Auto Series.

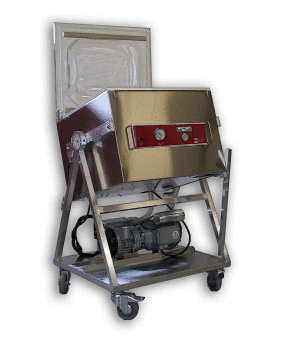

Our tilt version is widely used and adopted by Chefs, in the hotels and restaurants sector, fine catering and institutional sector.
| Model Nel N216 | Model Nel N219 | |
|---|---|---|
| Electrical requirements | 115V, 1, phase, 60 Hz | 115V, 1, phase, 60 Hz |
| Busch pump | 24 m3/h, 1.25 HP | 24 m3/h, 1.25 HP |
| Vacuum level | up to 2 mbar | up to 2 mbar |
| Oxygen O2 evacuated proportion at 2 mbars | 99.999% | 99.999% |
| Sealing bar(s) | 2 x 16" | 2 x 19" |
| Distance between the sealing bars | 16.5" | 14" |
| Chamber height | 7.25" | 7.25" |
| Overall dimension | 22" x 22" x 21" | 22" x 22" x 21" |
| Ready for gas flush option | Yes | Yes |
| Warranty | 1 year | 1 year |
| Certification | CSA | CSA |
General and versatile modified atmosphere and vacuum packaging.
Advanced and refined MAP and vacuum processes.
Vacuum packaging in high volume and high production rate.
Compact and mobile for side production or individual portions.
