Run an efficient production line with consistent results with Hi-Tech Swing Lid models.The SW series 226 and 426 models have high capacity Busch pumps, large chambers size, long sealing bars and sturdy constructions all to meet the requirements of heavy workloads.

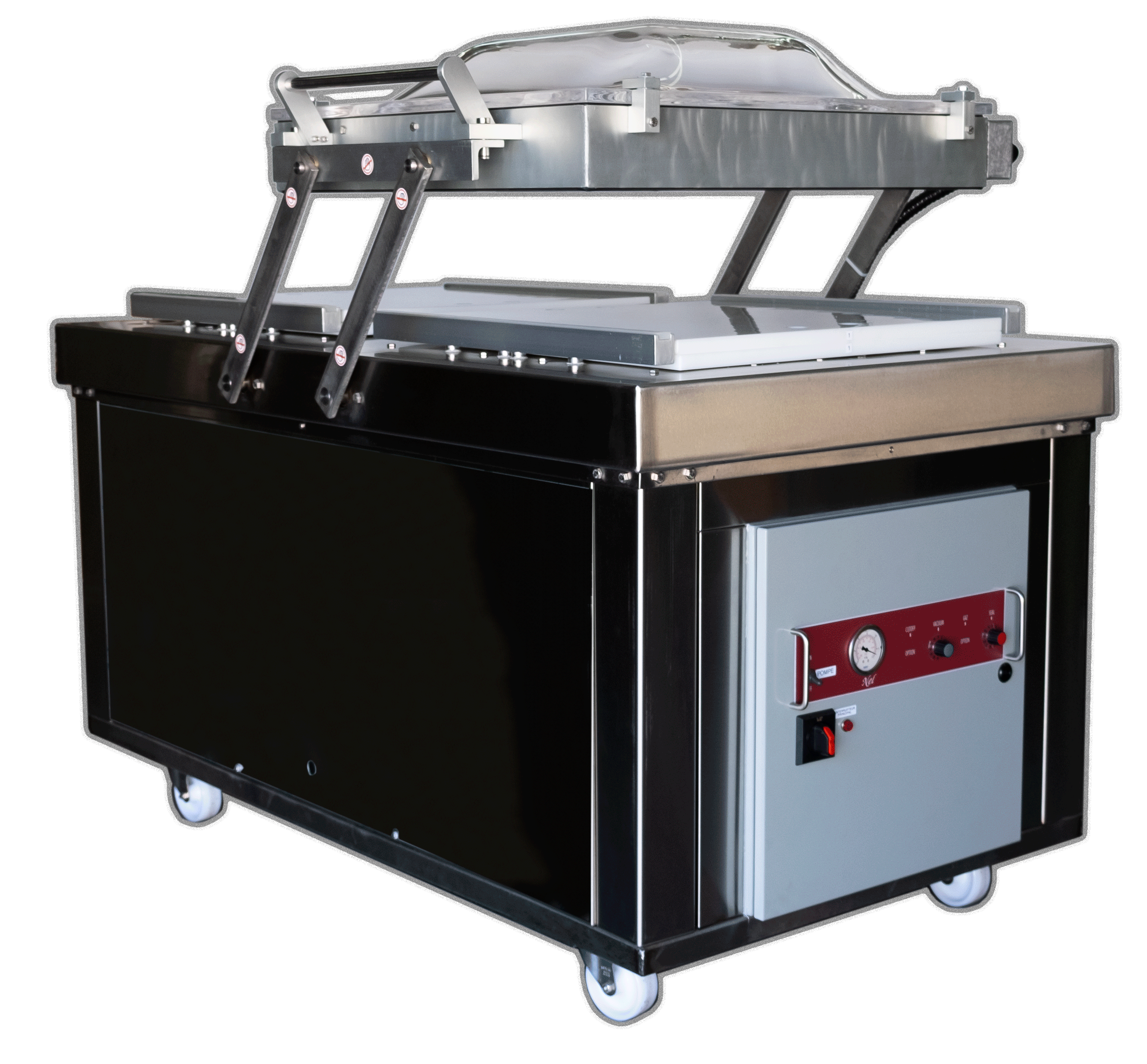

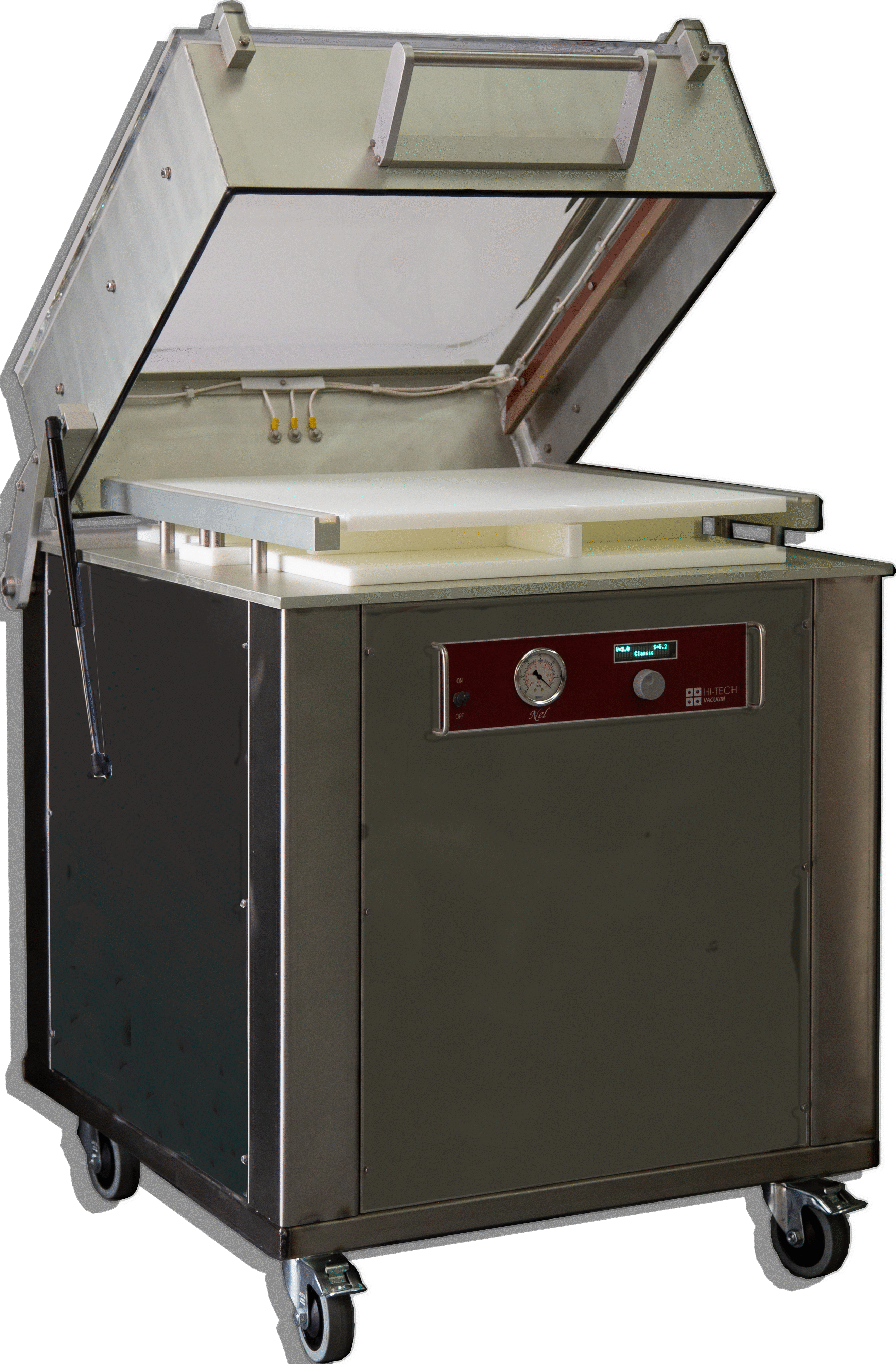

The SW series models 226 and 426 are built for high rate production of very intensive non-stop workloads.
| Model 226 | Model 426 | |
|---|---|---|
| Electrical requirements | 230V, 3 phases, 60 Hz | 230V, 3 phases, 60 Hz |
| Busch pump | 63 m3/h, 3 HP | 100 m3/h, 5 HP (165 m3/h, 7.5 HP also availabe) |
| Vacuum level | up to 2 mbar | up to 2 mbar |
| Oxygen O2 evacuated proportion at 2 mbars | 99.999% | 99.999% |

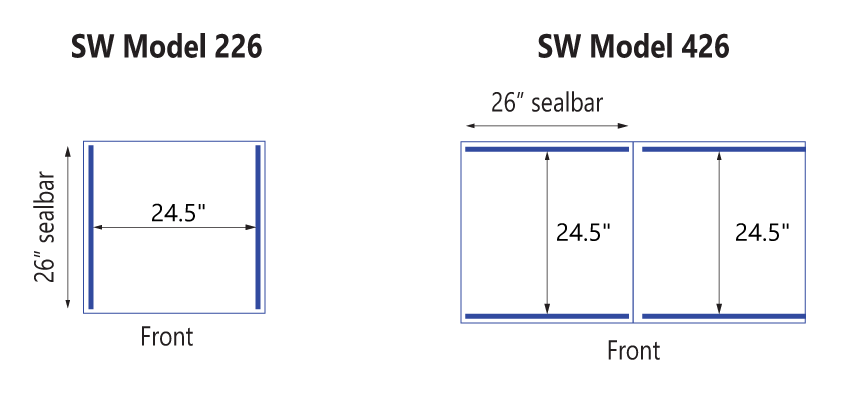

| Sealing bar(s) | 2 x 26" | 4 x 26" |
| Distance between the sealing bars | 24.5" | 24.5" |
| Chamber height | 9" (or 12.25") | 7" (or 9") |
| Overall dimension | 35" x 41" x 40" (lid closed) | 65" x 38" x 40" (lid closed) |
| Warranty | 1 year | 1 year |
| Certification | CSA | CSA |
General and versatile modified atmosphere and vacuum packaging.
Advanced and refined MAP and vacuum processes.
Vacuum packaging in high volume and high production rate.
Compact and mobile for side production or individual portions.
